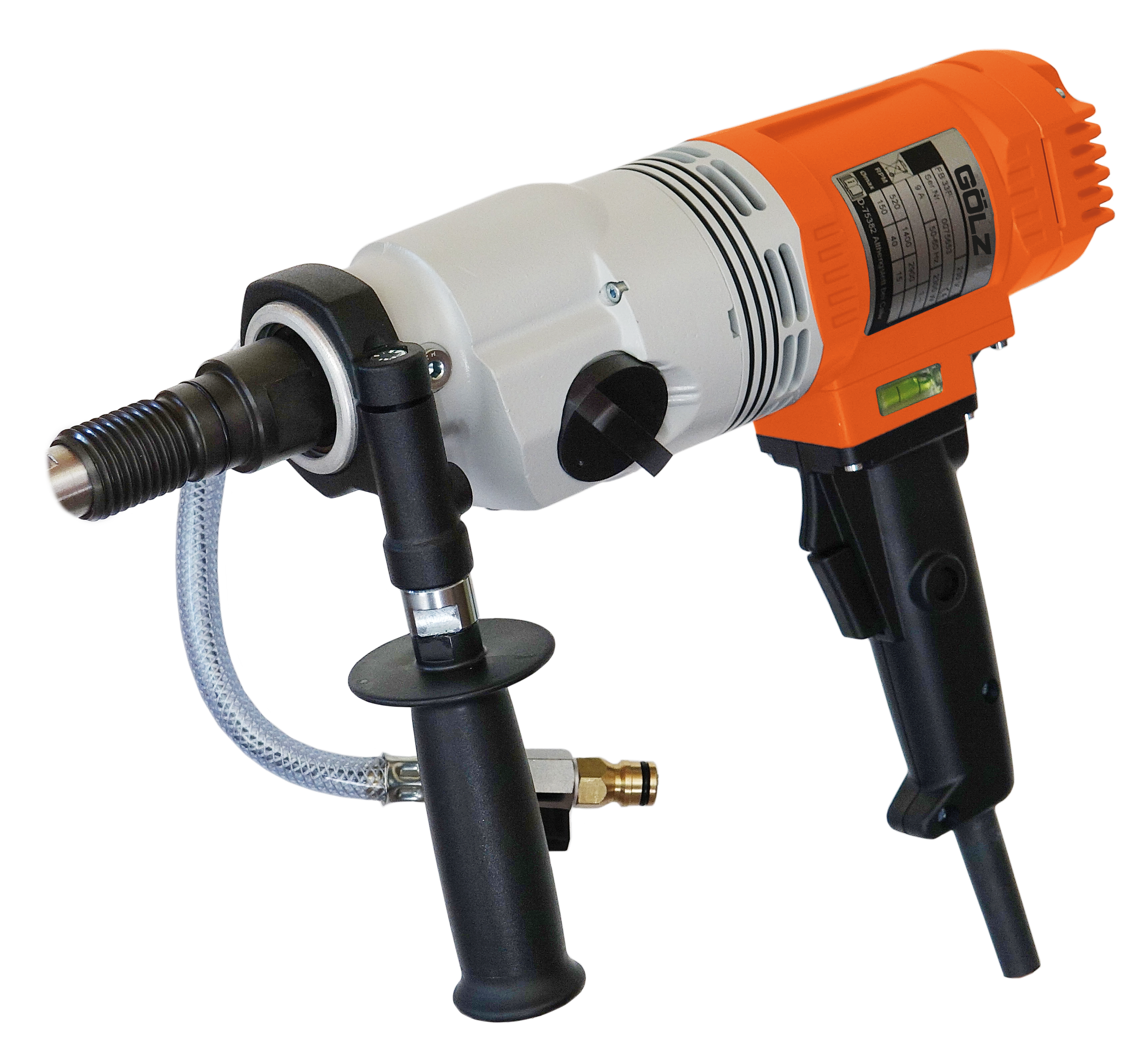

RD160 | FB33P
the compact, lightweight ans easy solution for all installation and fastening holes from Ø 10-162 mm (6")
-
Max. Drill-Ø162 mm
-
Travel Length520 mm
-
Base3-point anchor base
-
Motor3-speed, 2,2 kW, 230 V
ltem number: FB33P 0295 110 6325 / RD160 0295 110 6310
-
FEATURES

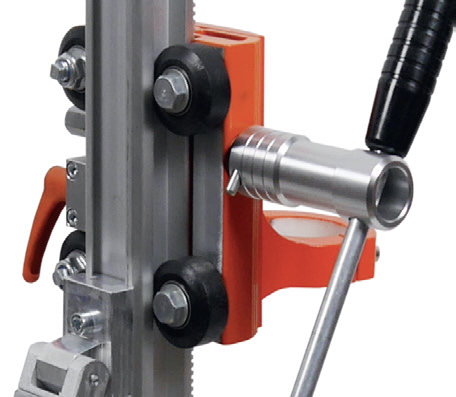

![Light professional roller guide]()

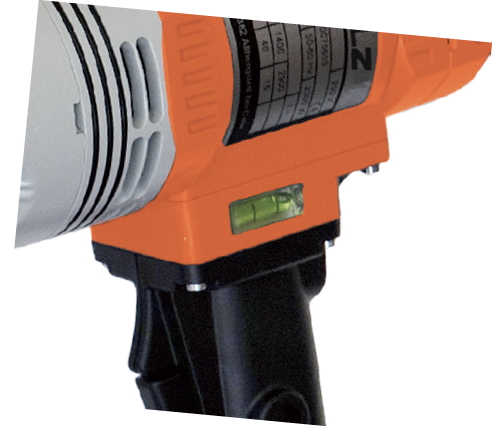

Light professional roller guide![Horizontal & Vertical Bubble Levels]()
Horizontal & Vertical Bubble Levels -
TECH DATA TABLEUser friendly and lightweight
• Lightweight aluminum core drill stand with 2- or 3-speed hand held core drill
• Light professional roller guide
• Anchor base
• Advantage: Coring can be operated hand held or with drill stand
• Lightweight and solid drill stand: 8,5 kg (18,7 lbs)
• Travel length: 520 mm (20")
• Maximum diameter: 162 mm (6")
• Angle drilling device up to 45°
• Left and right handed operation
• Tool- and fastening kit included
RD160 with anchor base Drill bit connection 1¼” UNC + R1/2" or R1/2" Complete with hand held FB33P - 1¼” UNC + R1/2” Power 2200 W, 230 V, 50-60 Hz RPM 520/1400/2900 min-1 Drilling Diameter Ø 20-162 mm Order number 0295 110 6325 Drill Stand RD160 without drill motor anchor base with ring collar and tool kit, (without fastening kit) Order number 0295 110 6310 -
Matching machines
-

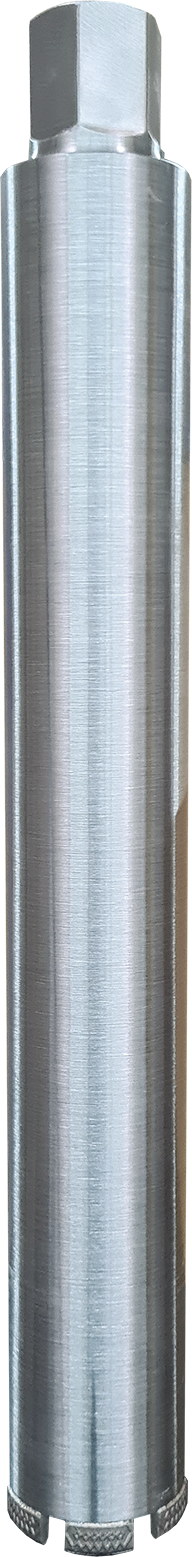

Diamond ToolsSuitable diamond tools – our recommendations
-
ACCESSORIESComplete your equipment
